VA216

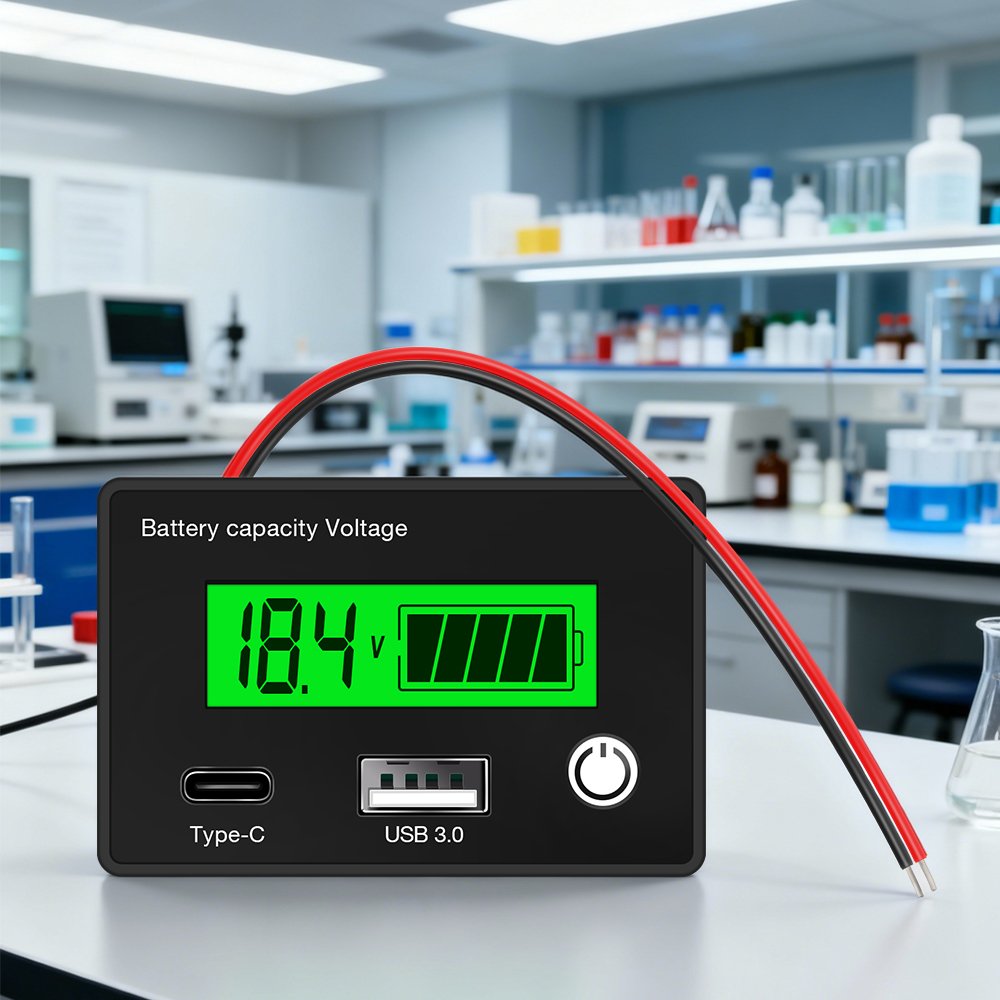

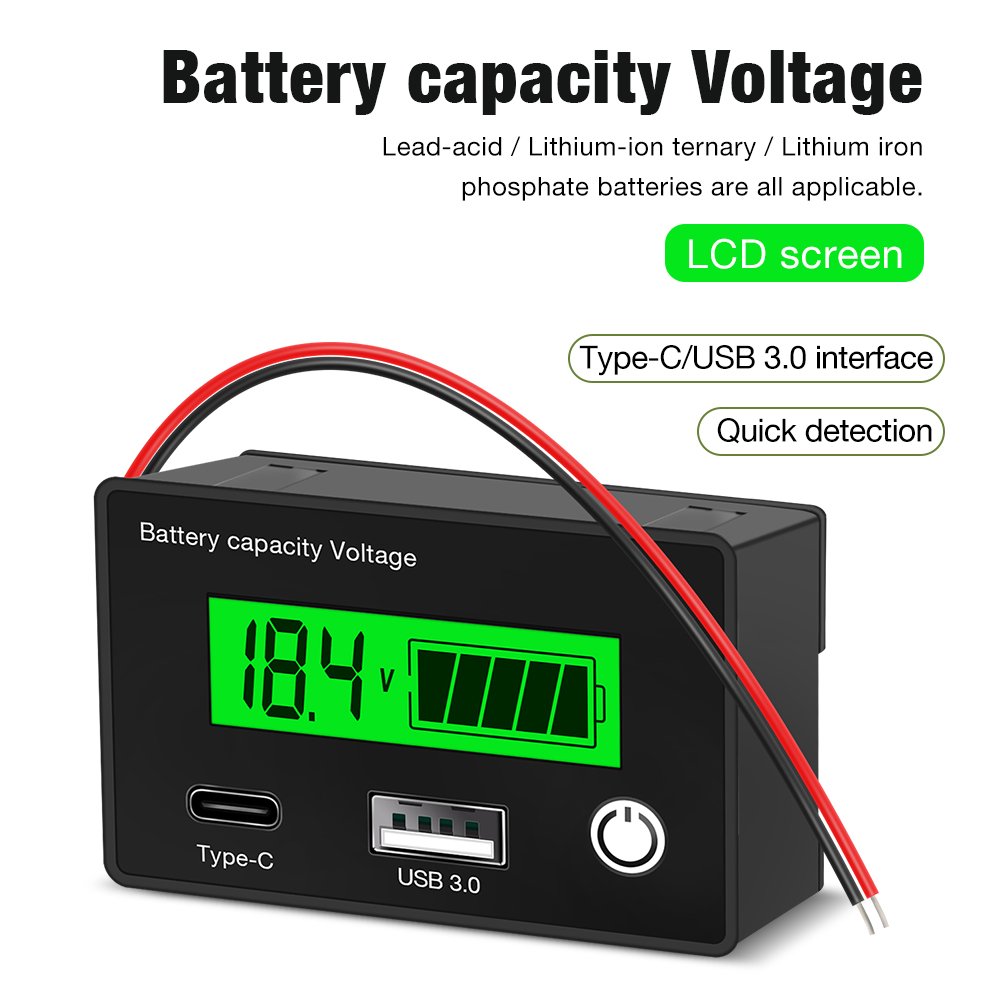

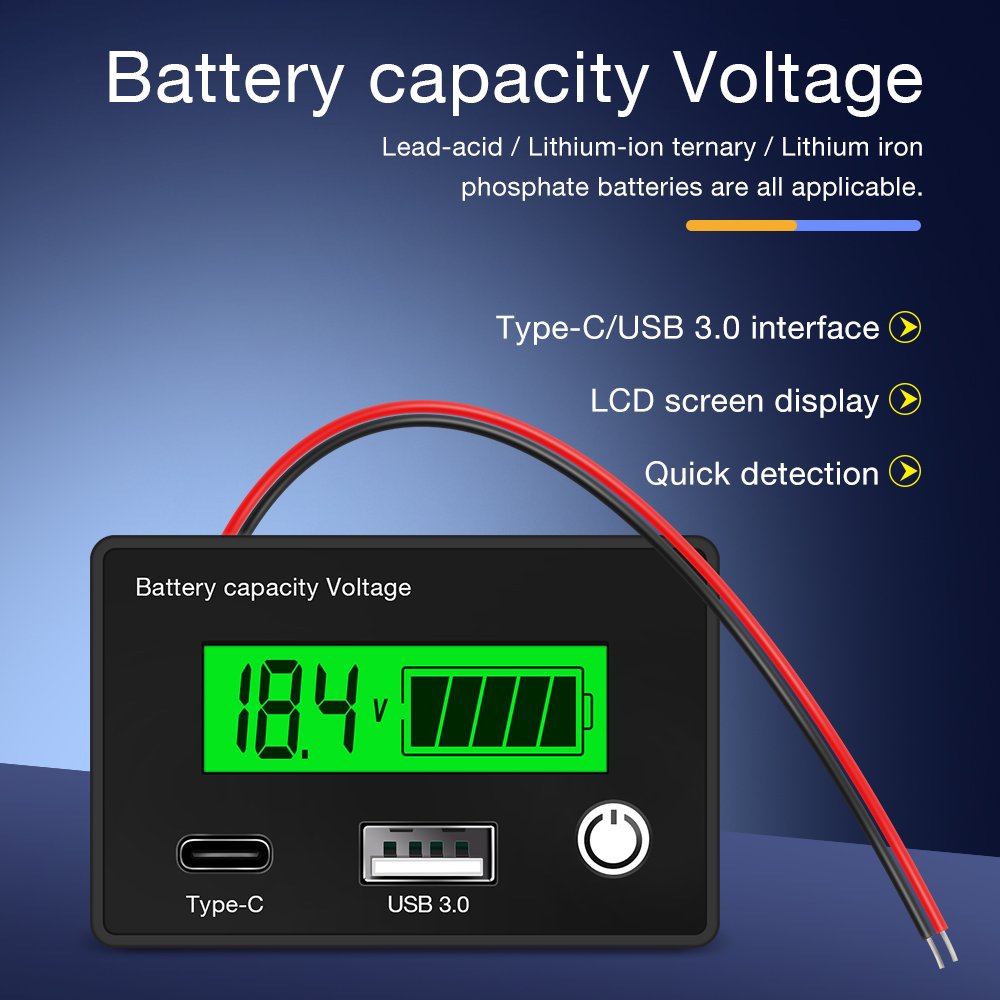

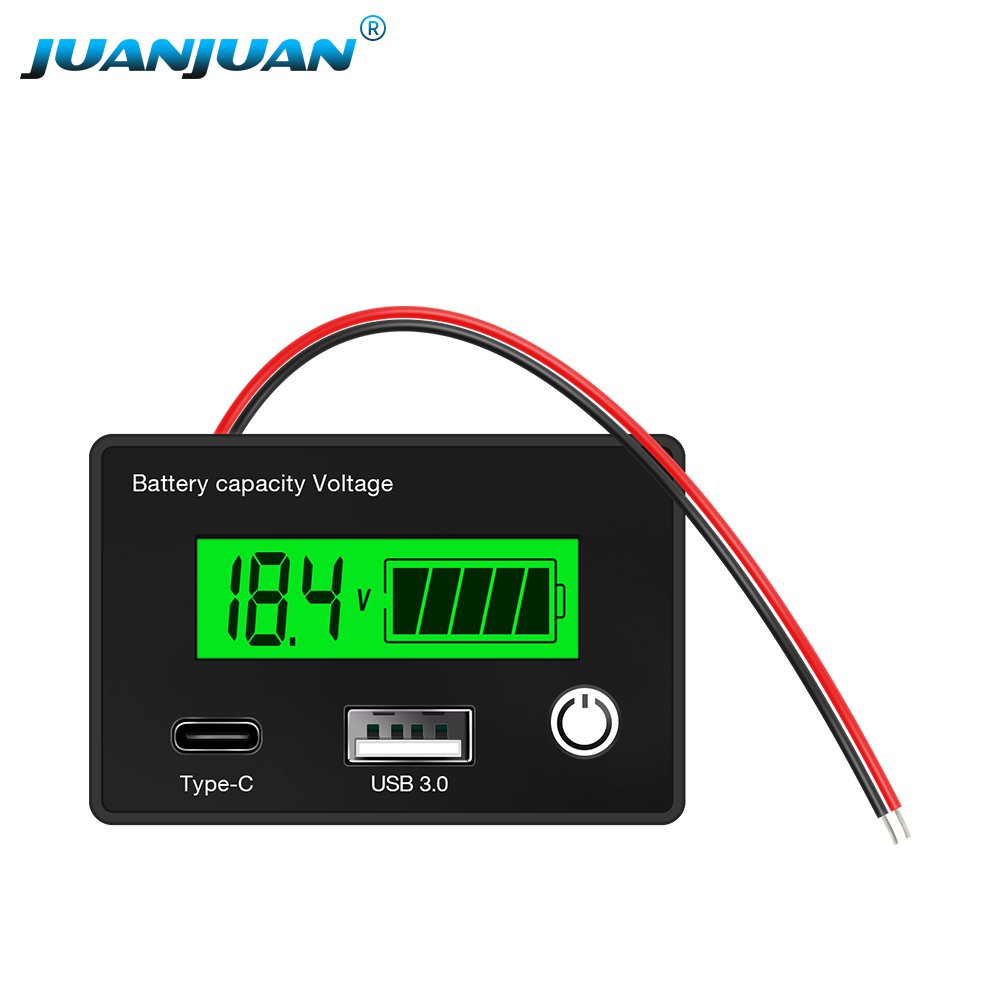

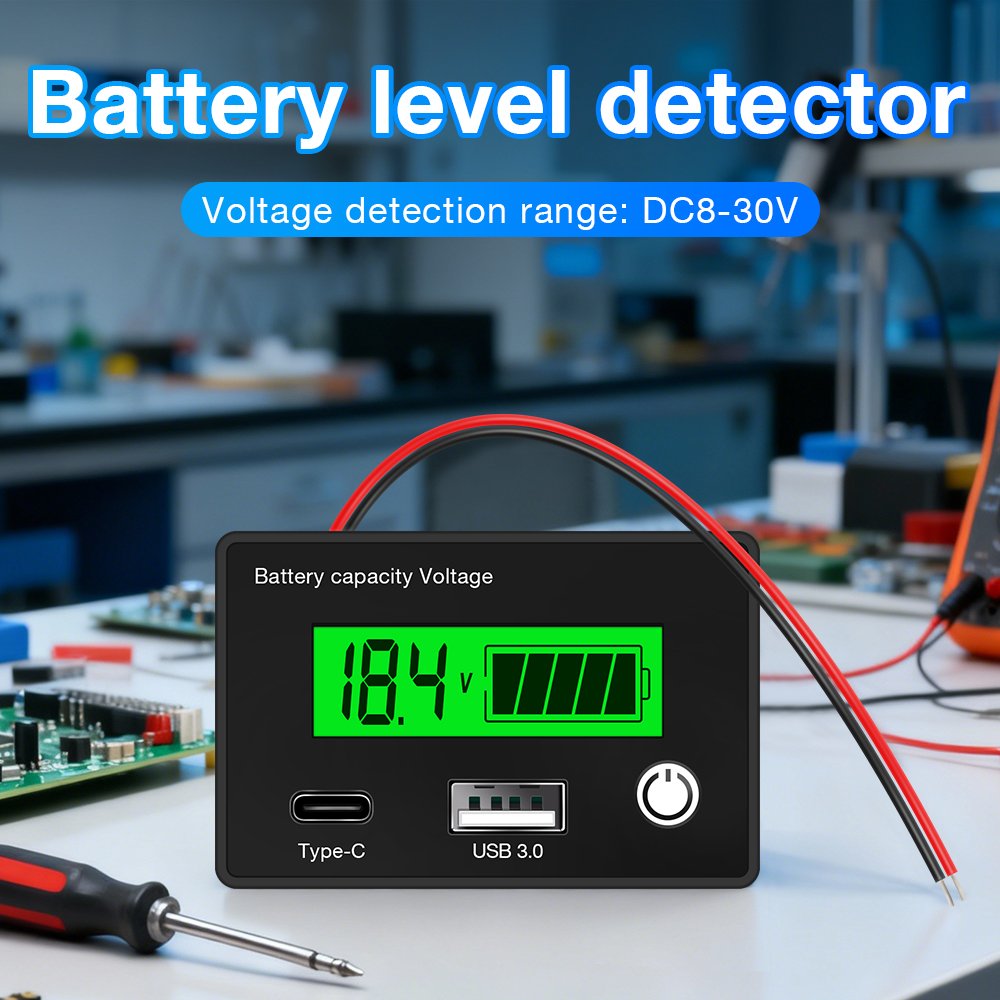

The DC8-30V Battery Level Detector is a compact and essential electronic module designed to accurately monitor the voltage status of batteries or power supplies within a wide 8V to 30V DC range. It is commonly used in automotive, solar, robotics, and backup power systems to provide a clear visual indication of remaining battery capacity, helping to prevent deep discharge and potential damage.

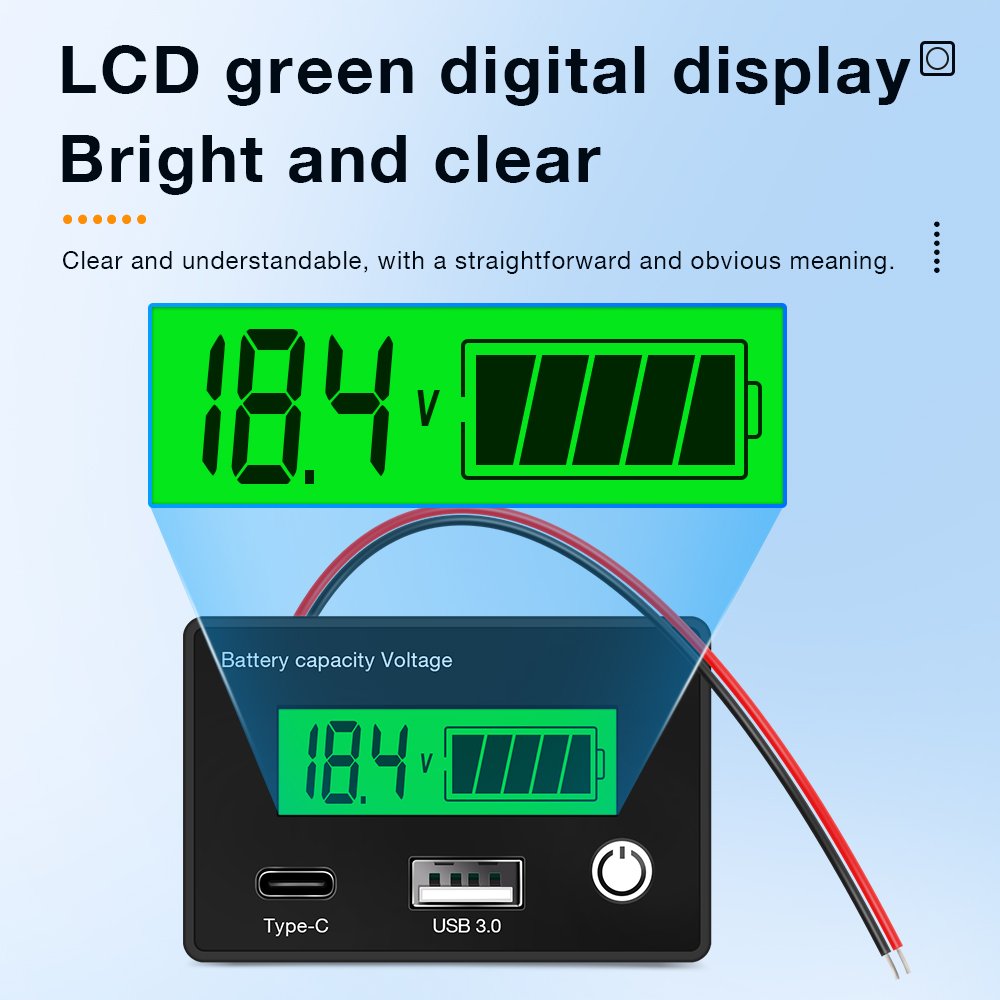

The core principle involves using a voltage divider network to scale down the input voltage to a level safe for measurement by a microcontroller or dedicated IC. This processed signal then drives a display unit, which is typically a set of multi-colored LEDs (like a 10-segment bar graph) or a digital readout (e.g., a 3-digit 7-segment display). Different LED colors (e.g., green, yellow, red) correspond to specific voltage thresholds, offering an instant, intuitive understanding of the battery’s state.

Key advantages of this detector include its wide input voltage compatibility, straightforward installation, low power consumption, and high reliability. It often features reverse polarity protection to safeguard the circuit. By providing real-time voltage monitoring, this simple yet effective device is crucial for maintaining battery health, ensuring system reliability, and allowing for timely recharging or replacement.
